1.2KW – 1.28KWH Wall-Mounted PV All-In-One Energy Storage System

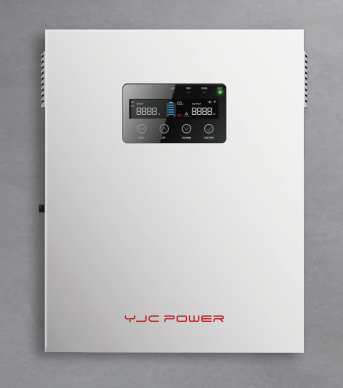

Model: YJC-HES-L-A-1.2kVA/1.28kWh

Model: YJC-HES-L-A-1.2kVA/1.28kWh

Key Features

  • 4-IN-1 INTEGRATED DESIGN: Inverter, MPPT solar charger, battery charger and battery all integrated into one enclosure – far fewer parts, far less wiring, much faster install.
  • EFFORTLESS, WALL-MOUNTED PLUG-AND-PLAY: Sleek wall-mounted format and pre-wired layout remove the need for extra brackets or complex wiring – ideal for balcony and small-home installs.
  • SEAMLESS SOLAR-TO-HOME & GRID BACKUP: Solar charges the battery; the built-in PCS/DC-AC inverter supplies household loads or hands off to the grid automatically when needed – simple energy flow, reliable backup.
  • COMPACT, COST-EFFECTIVE HOME SOLUTION: Small footprint and integrated components lower both material and labour costs – a practical, affordable choice for modern households.
  • REAL-TIME MONITORING & INTUITIVE DISPLAY: High-contrast LCD screen monitoring shows voltage, current, frequency and system status for easy oversight and control.
  • RELIABLE THERMAL CONTROL & ROBUST HOUSING: Intelligent cooling fan, sturdy metal enclosure and BMS protections keep temperatures stable and protect the system in daily use – backed by common industry warranties.

Technical Specifications

AC Input Parameters

  • Rated Voltage: 230 Vac (208/220/230/240 Vac)
  • Voltage Range: 90 ~ 280 Vac, settable
  • Connection Method: L + N + PE
  • Rated Grid Frequency: 50 / 60 Hz
  • Maximum Input Current: 10 A

PV Input Parameters

  • Maximum PV Input Power: 1000 W
  • Maximum PV Input Current: 14 A
  • MPPT Voltage Range: 20 ~ 100 Vdc
  • Maximum MPPT Efficiency: 99.5%
  • Number of MPPT Trackers: 1

AC Output Parameters

  • Maximum Output Power: 1.2 kVA
  • Rated Voltage: 230 Vac (208/220/230/240 Vac)
  • Connection Method: L + N + PE
  • Rated Grid Frequency: Battery Mode: 50 / 60 Hz; Line Mode: Synchronized with grid
  • Total Harmonic Distortion (THD): < 3% (linear load) / ≤ 5% (non-linear load, PF=0.7)
  • Power Factor: 1.0
  • Efficiency: > 90.5% @ 1.2 kVA (Battery Mode) / 99% @ 1.2 kVA (Line Mode)

Battery Parameters

  • Battery Type: LiFePO₄
  • Nominal Voltage: 12.8 V
  • Operating Voltage Range: 10 ~ 14.6 V
  • Nominal Capacity: 100 Ah
  • Nominal Energy: 1.28 kWh
  • Charge Voltage: 14.6 V
  • Maximum Charge Current: 100 A
  • Charging Mode: 2 ~ 60 A (Line Mode) + Max. 60 A (PV Mode), settable

General Parameters

  • Dimensions (W × D × H): 448 × 332 × 152 mm
  • Weight: 22 kg
  • IP Rating: IP21
  • Operating Temperature Range: -10 ~ 50 °C / 20% ~ 95% RH (non-condensing)
  • Storage Temperature Range: -15 ~ 60 °C
  • User Interface: LCD Display
  • Transfer Time: 10 ms (UPS Mode) / 10 ms (Appliance Mode) / 10 ms (Generator Mode)
  • Communication Interface: RS232 (Baud rate: 9600)
  • Parallel Function: N/A
  • Activation Method: AC / PV Activation
